What’s a Keyboard Switch

The keyboard switch is a combination switch, usually has a group of 4, 6, 8, 12 and 16. But there is also a single key switch(YQ01-1BR/Y01).

The main difference between the keyboard switch and the ordinary button switch is:

(1) It is worked by pressing buttons to connect or disconnect a group or several groups of electrical contacts;

(2) It is usually a linkage structure;

(3) The linkage contacts on each switch are more than one group of multipole switches, rather than only one or two contacts;

(4) Once pressing any group of switches in multipole, all the other switches will be reset to the original state (except for self-locking and non-locking structures);

(5) There are interlocking, self-locking and non-locking three kinds of use of the structure for users to choose, very practical and convenient.

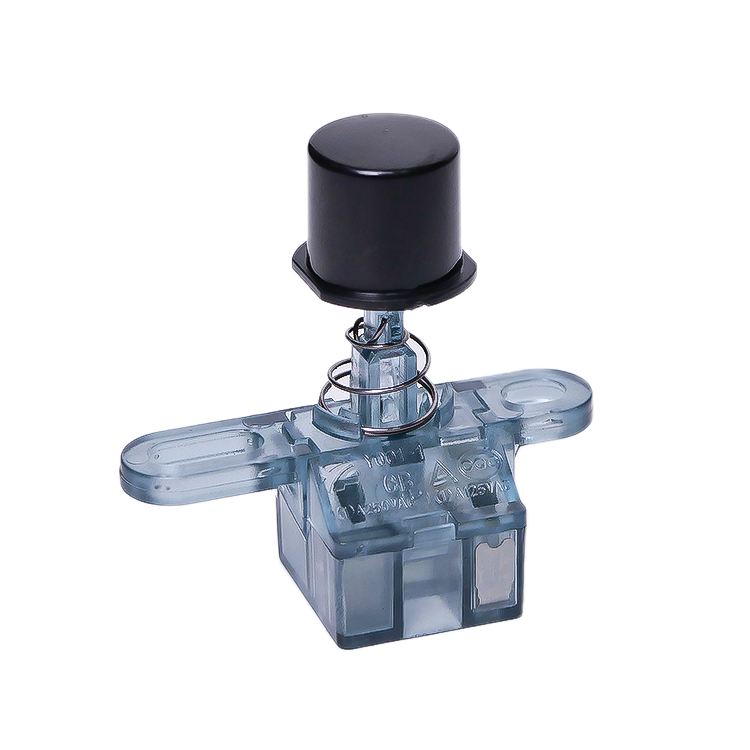

A typical keyboard switch style is shown below:

Keyboard switches are widely used in fan, kitchen hood, juicer, blender radio and other home appliances.
